Cummins Series

KEY SPECS :

Brand: COMAIZR
Product Code: CUMMINS CO25CEC-G - CO2281-1CEU-G

كامينز

Qty

24-2500KVA GENSETS WITH CUMMINS ENGINE

Our generators provide reliable and efficient power solutions, designed to meet the needs of various industries. Whether you need backup power or to operate equipment in remote work sites, our generators deliver excellent performance in harsh conditions. Equipped with high-efficiency engines, our generators are designed to provide stable power with low fuel consumption and long-lasting performance.

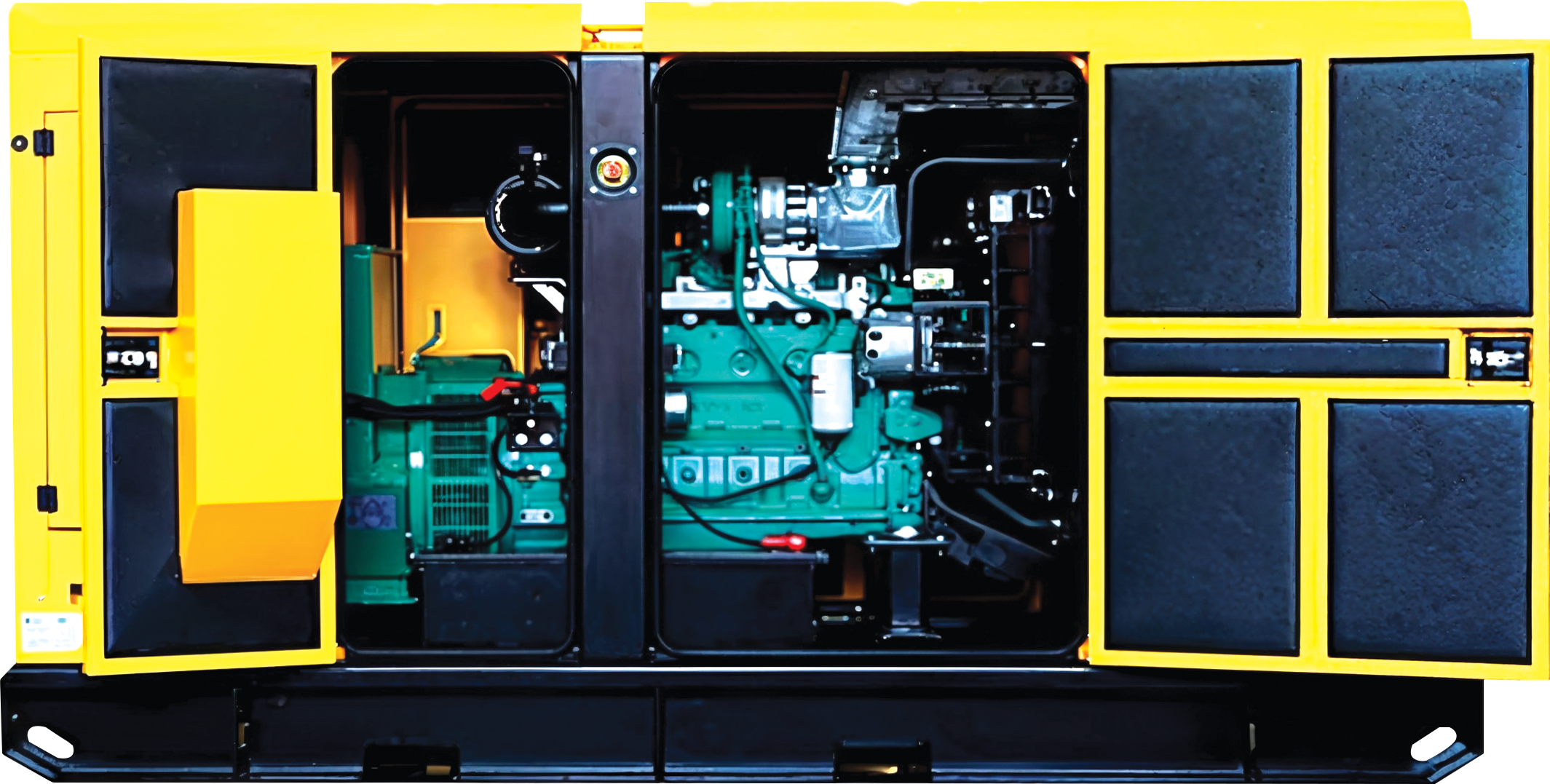

Comaizr Generator Components

Engine

Our generators rely on engines from Cummins, the renowned American company, known for their high efficiency and ability to perform in the toughest conditions.

Alternators

We use reliable French generators from Leroy-Somer to ensure stable and dependable power generation.

Control Panels

We offer advanced British-made control panels from Deep Sea, ensuring high precision in monitoring and control for smooth and safe operation.

Our Services

At Comaizr, we not only provide high-quality products but also commit to offering exceptional technical support and after-sales services. This makes us the ideal choice for success partners in the energy sector.

Model	Prime KVA	Prime KW	Standby KVA	Standby KW	Engine Name	Engine Model	Engine Origin	Alternator Name	Alternator Model	Alternator Origin	Panel Name	Panel Model	Panel Origin	Download
CO25CEC-G	25	20	28	22	Cummins	4B3.9-G1	China	LeroySomer	TAL-A40-G	France	DeepSea	6120	UK	PDF
CO31CEC-G	31	25	35	28	Cummins	4B3.9-G2	China	LeroySomer	TAL-A42-C	France	DeepSea	6120	UK	PDF
CO35CEC-G	35	28	38	30	Cummins	4B3.9-G12	China	LeroySomer	TAL-A42-E	France	DeepSea	6120	UK	PDF
CO50CEC-G	50	40	55	44	Cummins	4BT3.9-G2	China	LeroySomer	TAL-A42-G	France	DeepSea	6120	UK	PDF
CO60CEC-G	60	48	66	53	Cummins	4BTA3.9-G2	China	LeroySomer	TAL-A42-H	France	DeepSea	6120	UK	PDF
CO68CEC-G	68	54	75	60	Cummins	4BTA3.9-G2	China	LeroySomer	TAL-A42-H	France	DeepSea	6120	UK	PDF
CO80CEC-G	80	64	88	70.4	Cummins	4BTA3.9-G2G11	China	LeroySomer	TAL-A44-C	France	DeepSea	6120	UK	PDF
CO114CEC-G	114	91.2	125	100	Cummins	6BT5.9-G2	China	LeroySomer	TAL-A44-C	France	DeepSea	6120	UK	PDF
CO125CEC-G	125	100	138	110	Cummins	6BT5.9-G2	China	LeroySomer	TAL-A44-E	France	DeepSea	6120	UK	PDF
CO138CEC-G	138	110	150	120	Cummins	6BTA5.9G2	China	LeroySomer	TAL-A44-D	France	DeepSea	6120	UK	PDF
CO150CEC-G	150	120	165	132	Cummins	6BTAA5.9G2	China	LeroySomer	TAL-A44-H	France	DeepSea	6120	UK	PDF
CO200CEU-G	200	160	220	176	Cummins	6CTA8.3G2	China	LeroySomer	TAL-A44-M	France	DeepSea	6120	UK	PDF
CO225-1CEU-G	225	180	250	200	Cummins	6CTAA8.3G2	China	LeroySomer	TAL-A46-C	France	DeepSea	6120	UK	PDF
CO250-1CEC-G	250	200	275	220	Cummins	6LTAA8.9G2	China	LeroySomer	TAL-A46-D	France	DeepSea	6120	UK	PDF
CO275CEU-G	275	220	300	240	Cummins	6LTAA8.9G2	China	LeroySomer	TAL-A46-E	France	DeepSea	6120	UK	PDF
CO284CEI-G	284	227	313	250	Cummins	QSL9-G3	India	LeroySomer	TAL-A46-E	France	DeepSea	6120	UK	PDF
CO300CEC-G	300	240	330	264	Cummins	6LTAA9.5-G1	China	LeroySomer	TAL-A46-E	France	DeepSea	6120	UK	PDF
CO313-1CEC-G	313	250	344	275	Cummins	6LTAA9.5G1	China	LeroySomer	TAL-046-F	France	DeepSea	6120	UK	PDF
CO300CEC-G	300	240	330	264	Cummins	NTA855-G1	China	LeroySomer	TAL-A46-E	France	DeepSea	6120	UK	PDF
CO350CEC-G	350	280	388	310	Cummins	NTA855-G1B	China	LeroySomer	TAL-A46-H	France	DeepSea	6120	UK	PDF
CO400CEC-G	400	320	440	352	Cummins	NTAA855-G3	China	LeroySomer	TAL-A47-B	France	DeepSea	6120	UK	PDF
CO500-1CEC-G	500	400	550	440	Cummins	KTA19-G3	China	LeroySomer	TAL-A47-C	France	DeepSea	6120	UK	PDF
CO485CEC-G	485	388	533	426	Cummins	QSG12G4	China	LeroySomer	TAL-A47-C	France	DeepSea	6120	UK	PDF
CO500-1CEC-G	500	400	550	440	Cummins	QSZ13-G3	China	LeroySomer	TAL-A47-C	France	DeepSea	6120	UK	PDF
CO500CEC-G	500	400	550	440	Cummins	QSZ13-G5	China	LeroySomer	TAL-A473-C	France	DeepSea	6120	UK	PDF
CO574CEC-G	574	459.2	631	504	Cummins	QSZ13-G11	China	LeroySomer	TAL-A47-D	France	DeepSea	6120	UK	PDF
CO563-1CEC-G	563	450	625	500	Cummins	KTA19G4	China	LeroySomer	TAL-0473-D	France	DeepSea	6120	UK	PDF
CO550CEC-G	550	440	605	484	Cummins	KTA19-G3A	China	LeroySomer	TAL-A47-C	France	DeepSea	6120	UK	PDF
CO625-1CEC-G	625	500	688	550	Cummins	KTAA19G5	China	LeroySomer	TAL-A47-F	France	DeepSea	6120	UK	PDF
CO625CEC-G	625	500	710	568	Cummins	QSK19G4	China	LeroySomer	TAL-A47-F	France	DeepSea	6120	UK	PDF
CO688-1CEC-G	688	550	750	600	Cummins	KTAA19-G6A	China	LeroySomer	TAL-A49-B	France	DeepSea	6120	UK	PDF
CO800CEC-G	800	640	860	688	Cummins	KTA38-G	China	LeroySomer	TAL-A49-C	France	DeepSea	6120	UK	PDF
CO910CEC-G	910	728	1000	800	Cummins	KTA38-G2A	China	LeroySomer	TAL-A49-D	France	DeepSea	6120	UK	PDF
CO909CEI-G	909	727	1000	800	Cummins	QSK23-G3	India	LeroySomer	TAL-A49D	France	DeepSea	6120	UK	PDF
CO1000CEU-G	1000	800	1100	880	Cummins	KTA38G2A	China	LeroySomer	TAL-A49-E	France	DeepSea	6120	UK	PDF
CO1125CEC-G	1125	900	1250	1000	Cummins	KTA38-G4	China	LeroySomer	LSA50.2M6	France	DeepSea	6120	UK	PDF
CO1250-1CEC-G	1250	1000	1375	1100	Cummins	KTA38-G9	China	LeroySomer	LSA49.3L10	France	DeepSea	6120	UK	PDF
CO1400-1CEC-G	1400	1120	1540	1232	Cummins	KTA50-G3	China	LeroySomer	LSA50.2L8	France	DeepSea	6120	UK	PDF
CO1619CEU-G	1619	1295.2	1780	1424	Cummins	KTA50-G9	China	LeroySomer	LSA50.2VL10	France	DeepSea	6120	UK	PDF
CO1820-1CEU-G	1820	1440	2000	1600	Cummins	QSK50G4	USA	LeroySomer	LSA52.355	France	DeepSea	6120	UK	PDF
CO2000CEU-G	2000	1600	2213	1770	Cummins	QSK60-G5	USA	LeroySomer	LSA52.3S6	France	DeepSea	6120	UK	PDF
CO2281-1CEU-G	2281	1825	2500	2000	Cummins	QSK60G6	USA	LeroySomer	LSA52.3S7	France	DeepSea	6120	UK	PDF

Engine
Fuel Consumption 25% load L/H	2.4-116
Fuel Consumption 50% load L/H	3.7-205
Fuel Consumption 75% load L/H	4.6-295
Fuel Consumption 100% load L/H	5.7-393
More engine specfications	please download Cummins engine diesel generator leaflet 50HZ / 60HZ
Alternator
Voltage V	50HZ：230/400V 60HZ：208/120; 220/127;416/240; 440/254; 480/277
Phase	AC Single Phase/AC Three Phase
Brand	Stamford/Leroy somer/Comaizr
Excitation Mode	Brushless（AVR）
Power Factor (cosΦ)	0.8(lag)
Diesel Generator Set
Fuel Tank Capacity	45-3144 Liters
Control panel	DEEPSEA / COMAP
Noise Level	66-85 dbA/7m
Option1	Automatic Transfer Switch
Option2	MobileTrailer Type Diesel Generator
Color	Customers' Requirement
Warranty	12 Months/1000 Hours
